Products > Screws > > 304 stainless steel round head hexagon socket screw 7380 mushroom head hexagon socket bolt M3-M6

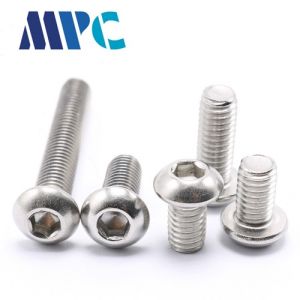

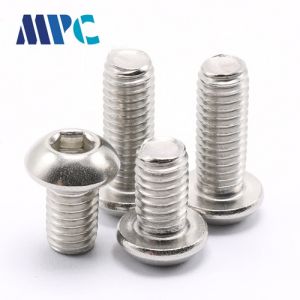

Product name : 304 stainless steel round head hexagon socket screw 7380 mushroom head hexagon socket bolt M3-M6
Product No. : 202091195612

  Details:

 304 stainless steel round head hexagon socket screw 7380 mushroom head hexagon socket bolt M3-M6

Specification:

Item No.: 304 round head hexagon socket
Category: Hexagon socket head
Head type: inner hexagon
Thread specification: M4
Length across the head: 7.3-7.6 (mm)
Head thickness: 2 (mm)
Performance level: A2
Total length: 16 (mm)
Thread tolerance: 4h
Material: stainless steel 304
Surface treatment: no treatment
Material grade: stainless steel A2-70
Product grade: A grade standard type
National standard: standard number ISO7380
Product specifications: 3*4,3*5,3*6,3*8,3*10,3*12,3*14,3*16,3*18,3*20,3*25,3*30 ,3*35,3*40,4*6,4*8,4*10,4*12,4*14,4*16,4*18,4*20,4*25,4*30,4 *35,4*40,4*50,5*8,5*10,5*12,5*14,5*16,5*18,5*20,5*25,5*30,5*35 ,5*40,5*45,5*50,5*60,6*8,6*10,6*12,6*16,6*20,6*25,6*30,6*35,6 *40,6*45,6*50,6*55,6*60,6*70,6*14,4*60,8*12,8*16,8*20,8*25,8*30 ,8*35,8*40,8*45,8*50,3*45,3*50,1/4-20*1/2 (700 in a box),304 ANSIB18.3BT 3/8-16 *1
