Slide guide rail Slide block Zhejiang heavy linear guide rail


Specifictions:

Accuracy level :H

Preloading: Standard

Ball arrangement: double row

Rated dynamic load :11.38 17.75 26.48 38.74 49.52 77.57 114.44 163.63

Rated static load: 37.84 56.19 83.06 102.87 155.93 227.81 324.71

Allowable static moment: 0.17 0.38 0.64 1.06 1.73 3.01 5.66 10.02

Kit/piece: Guide slide

Accuracy: Medium and advanced

Nozzle specifications: 12 5.3 12.9

Type: linear guide

Slider fixing method: lock type

Material: precision bearing steel

Type: Sliding guide

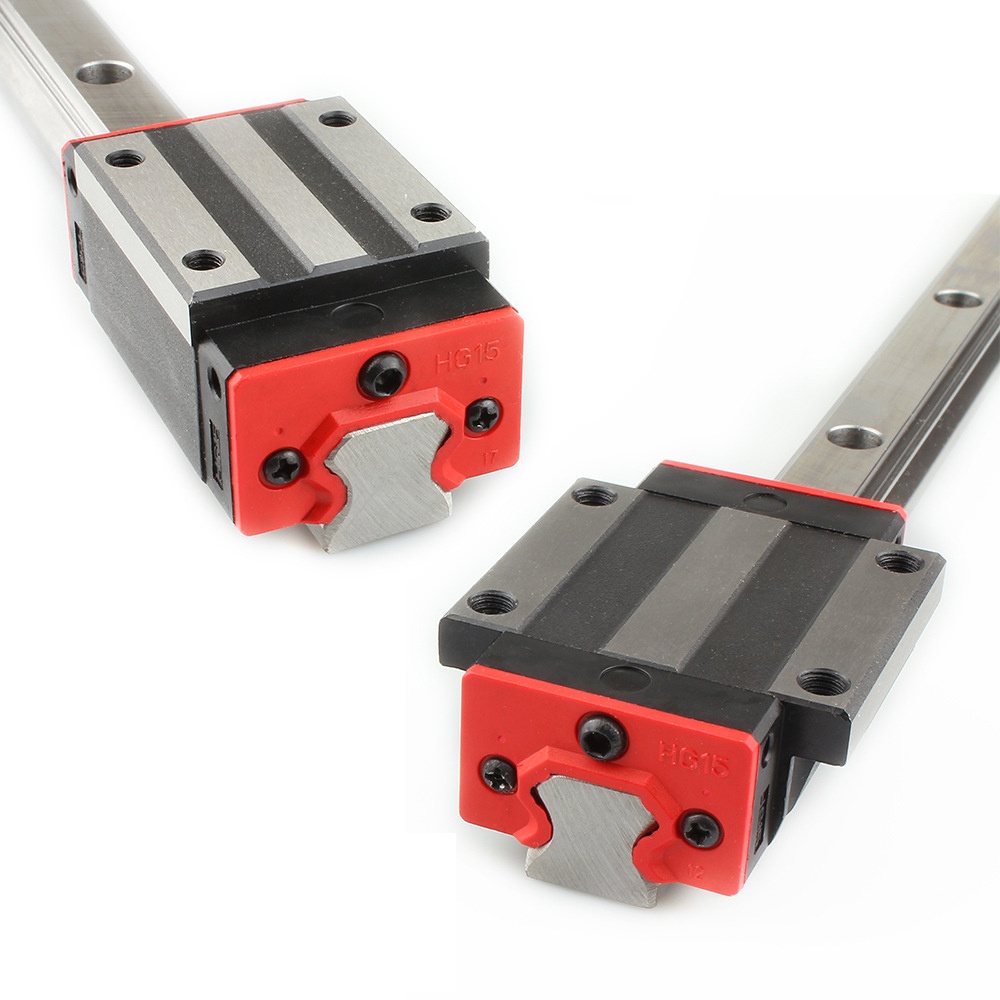

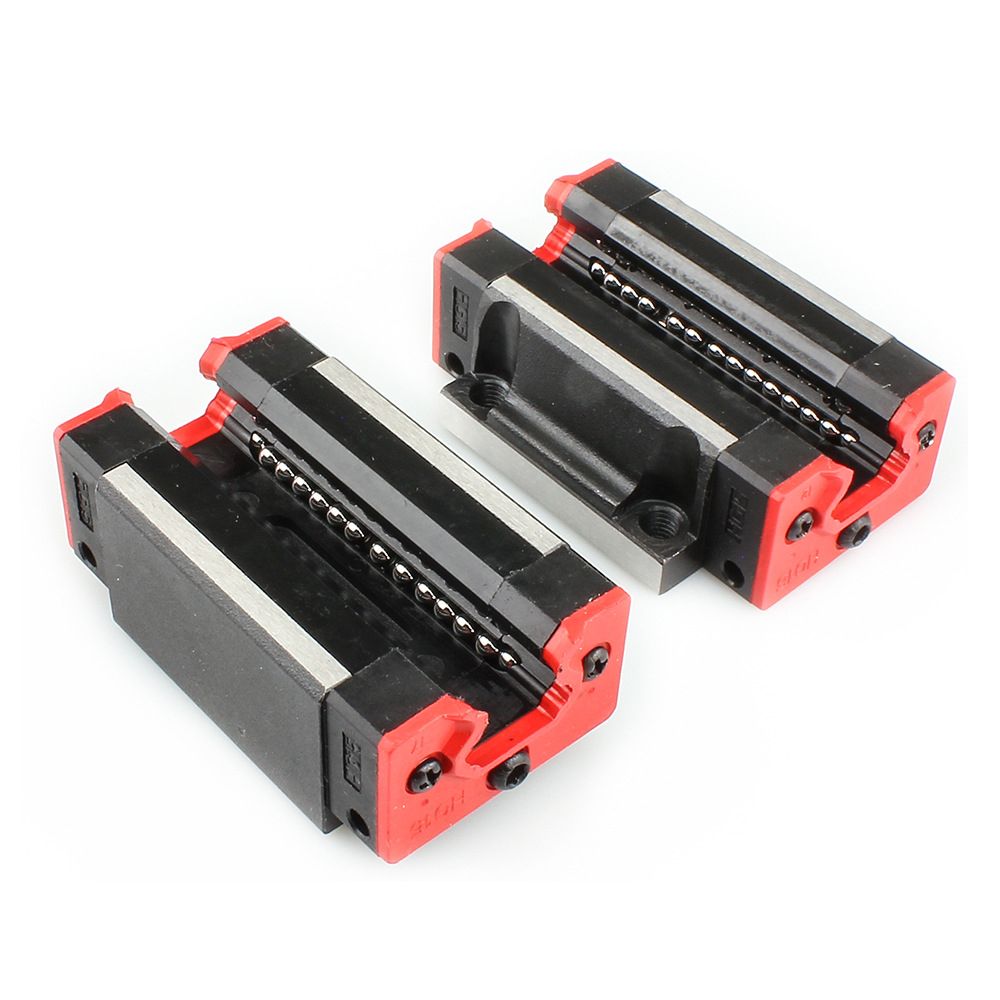

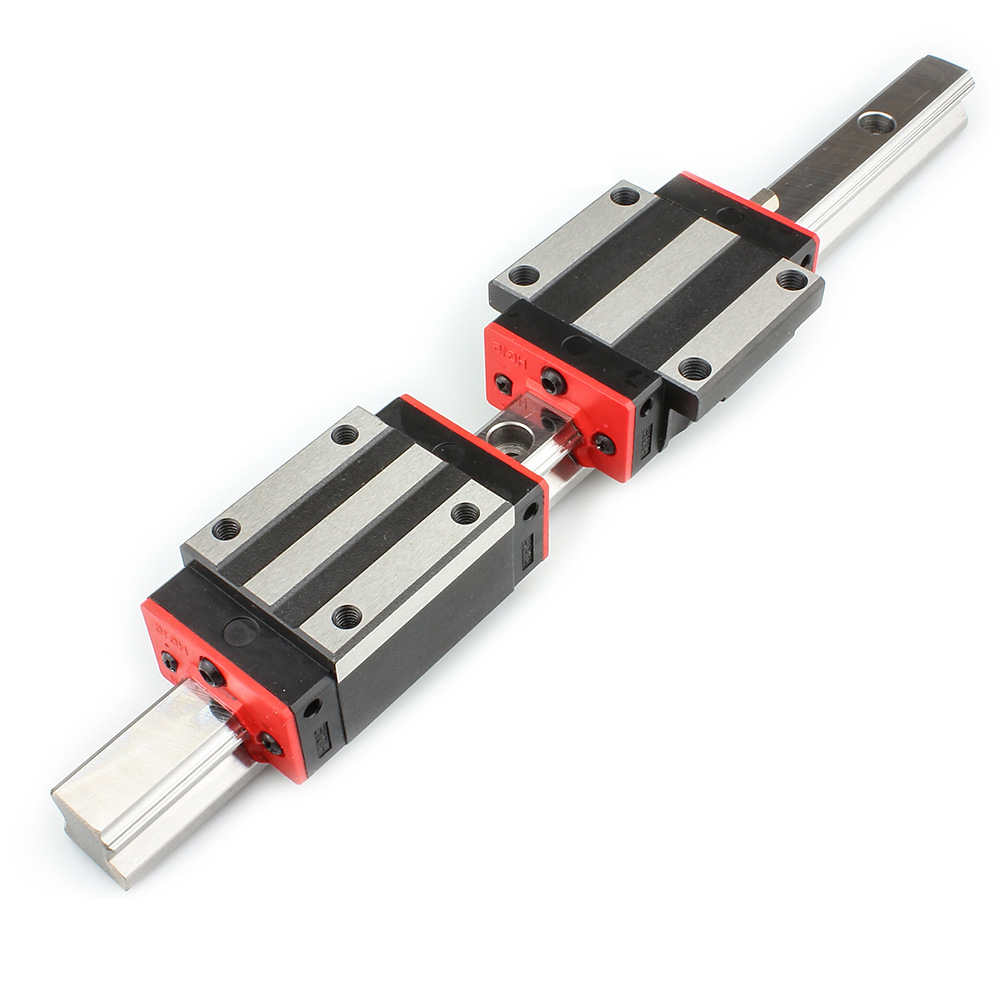

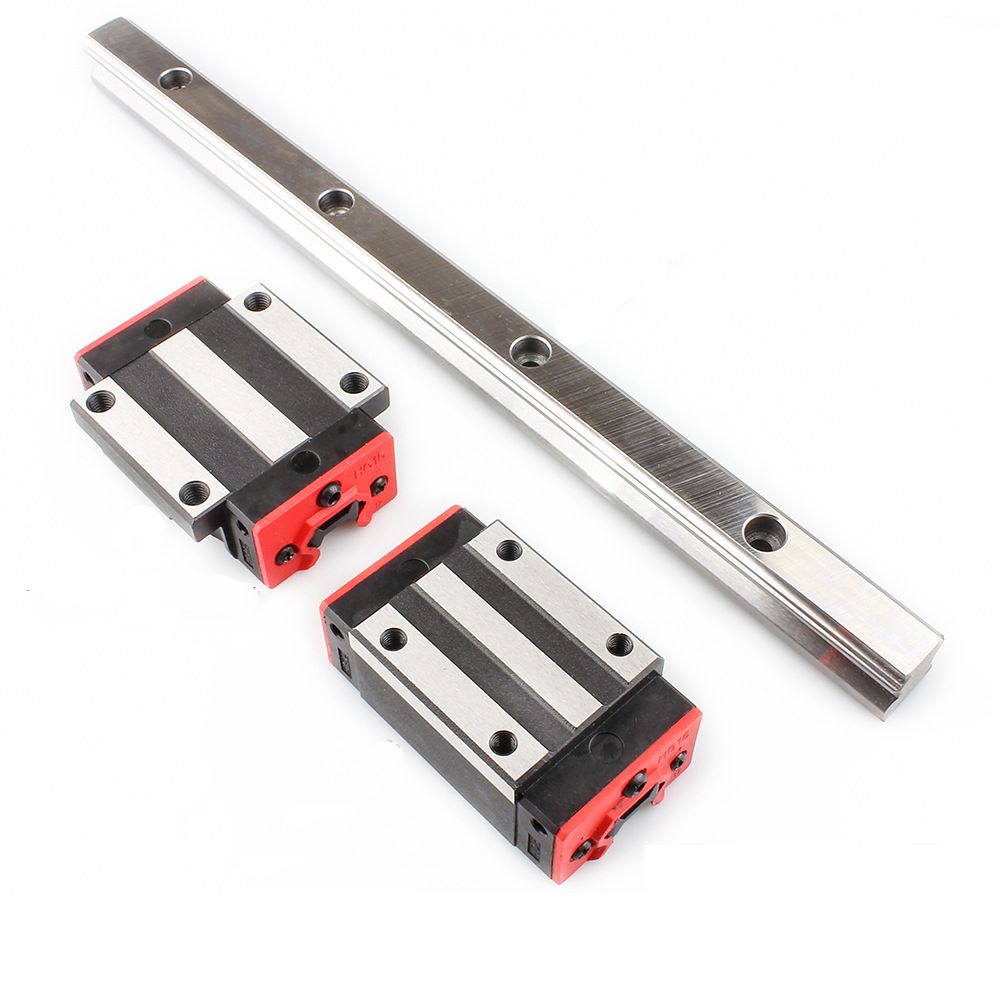

Photos:
